Graphene composite for Batteries

  • 产品介绍Graphene composite for Batteries

Graphene-encapsulated Energy Storage Materials

MGInnovation 拥有对石墨烯相关能源储存材料的多数专利权利。

金属材料及石墨烯,碳素的含量等可根据顾客的要求调节含量

Application Product Commposite Shape Metal Impurities Type
Li-ion Battery MGLB nSi/C@rGO round < 100 ppm powder
Supercapacitor MGSC-1 MnO2@carbon round < 100 ppm powder
MGSC-2 MnO2@rGO round < 100 ppm powder
Fuel cells MGFC M(Pt,Cu)@rGO round < 100 ppm Powder

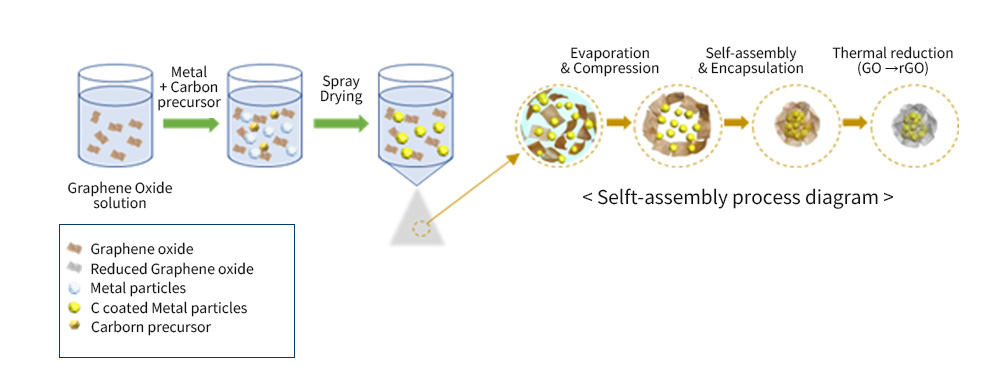

Graphene encapsulation process

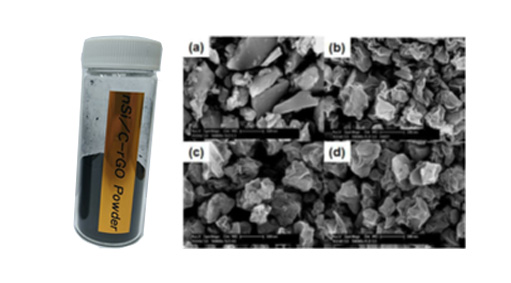

Graphene encapsulated silicon anode for Li-ion Battery

  • nSi/C@rGO(a) non-coated (b) 0.1 wt%, (c) 0.3 wt%, (d) 0.5 wt% coated GO

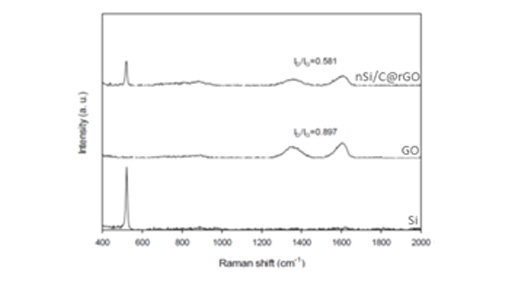

  • Raman spectrum

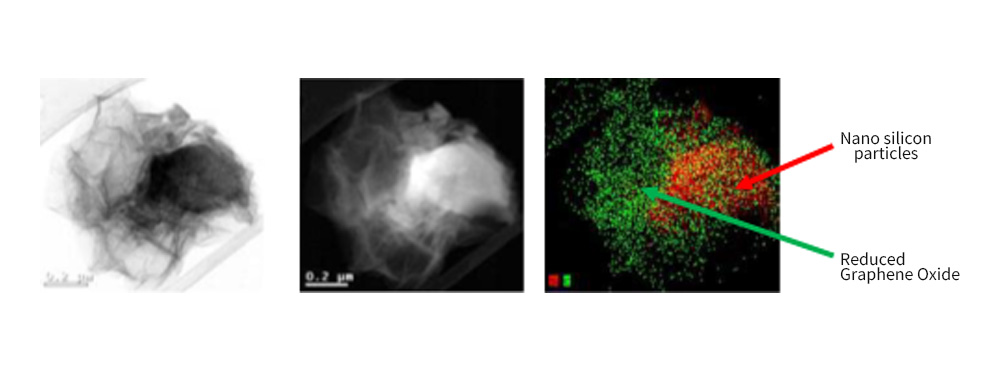

TEM & EDS

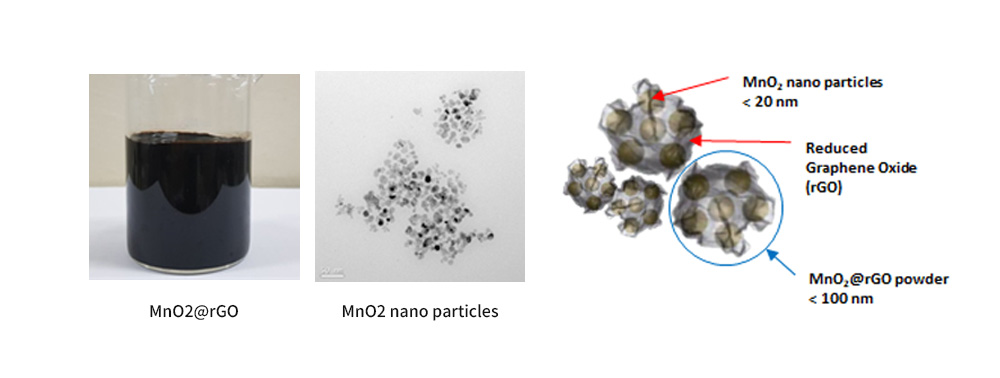

Graphene encapsulated Manganese oxide for Supercapacitors

Graphene encapsulated Platinum nano particle for Fuel cells

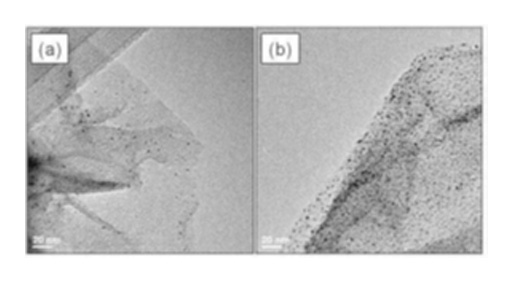

  • Pt@rGO particles

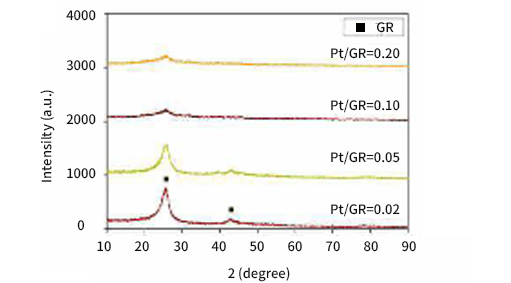

  • X-ray diffraction
